Customer search petroleum gas 27/05/2025 18:21:03 RIG EPS 2000HP Drilling rig
here is a summary of the rig eps 101 (2000 hp):

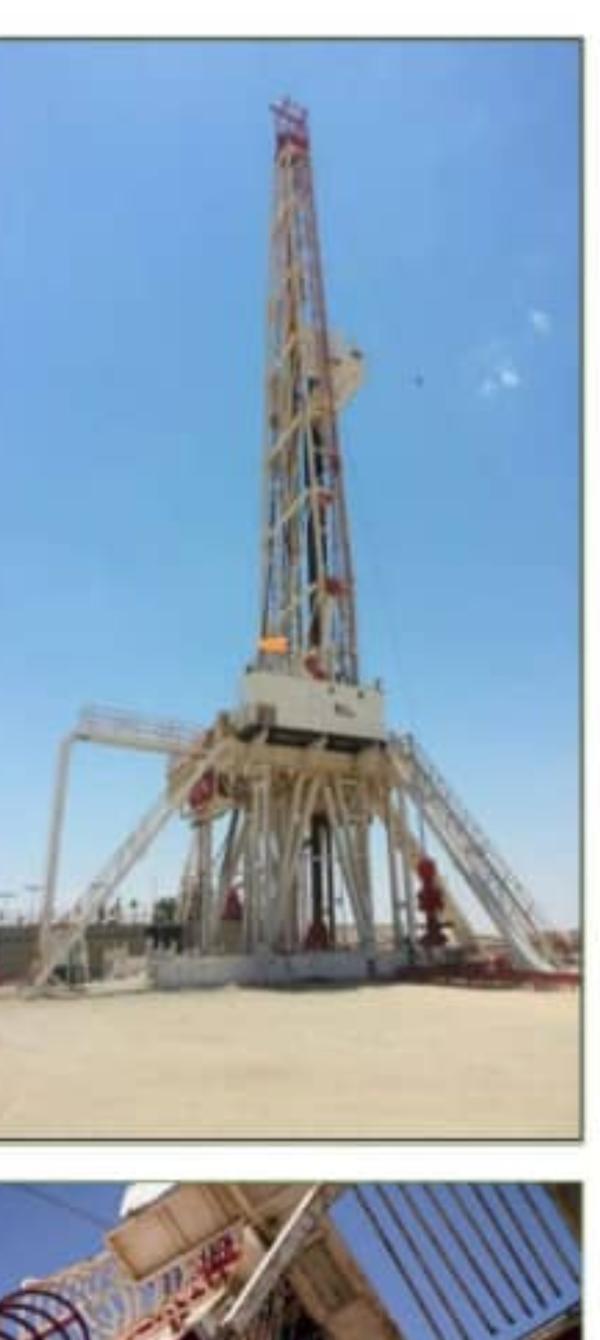

summary – rig eps 101 (2000 hp) drilling rig
rig eps 101 is a high capacity land drilling rig designed for deep oil and gas exploration, with a rated power of 2000 hp and the ability to drill up to 24,000 feet using 5 drill pipes. it is equipped with modern dc motors, heavy duty components, and a comprehensive mud and control system, making it suitable for demanding drilling operations.
key features:
draw works: 2 x 1075 hp dc motors with elmagco brake
mast: 146 ft height, 1,000,000 lbs hook load capacity
substructure: 545,000 lbs load, 34.5 ft floor height
crown block & travelling block: rated for 1,000,000 lbs
top drive: nov tds 11sa, 400 hp motors, 55,000 ft lb torque
rotary table & swivel: 500 st tons, 5,000 psi pressure
mud pumps: 2 x emsco f 1600, each 1600 hp, 5,000 psi
mud system: 13,000 bbl active + 1000 bbl reserve
power system: 4 x cat 3512 engines, 1775 hp each, scr powered
blowout preventer (bop): 13 5/8” stack, annular & ram preventers rated at 5,000 psi
safety & living: fully equipped for contractor and client operation
this rig is well suited for deep drilling, high pressure formations, and operations in challenging environments. it combines high lifting capacity, powerful top drive, and a robust mud system for safe and efficient performance.
let me know if you want a version in french or need a comparison template.
Tariff conditions : 15 millions €
Quantity : 2
Cost : 15 millions €
