Vente Unité Compléte De Couche Bébé - Chine

VENTE Annonce N°398959:   Recherche de client matériels machines  Unité compléte de couche bébé
bonjour.

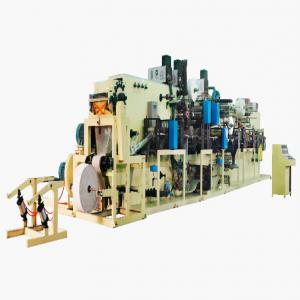

nous vous proposons une unité complète de fabrication de couche bébé.
paramètres techniques:
key technical parameter:
power: tri phase 380v, 50hz
main motor: 105 kw(gluing machine, air compressor excluded)
dimension (l x w x h): 20, 000 x 2, 500 x 2, 700mm
speed: 200 300pcs/min
qualification rate: >96%
operator: 2 3 persons
packing: wooden case packed

characteristic and functions:
1. it can produce three sizes(l. m. s ) products.
2. mixed manufacture with s. a. p.
3. equipped with high effective pulverizer.
4. equipped with elastic waistline, front waist sticking, side waist sticking and solid protecting, leg elastic structure.
5. finished products stacked out in a line of triple fold.
6. when lack of material or broken material take place, it will alarm. and it has the ability to eliminate the inferiority when changing or linking the material.

7. the driving system connects with sealed gear case, universal joint and sychronous belt. the gear case adopts helical wimble gear type.
8. the positioning and molding process are all equipped with electromotive differential to operate and control, regulate relative positions without stopping machine.
9. include plc+ touch screen system + frequency converter.
10. opening raw material roll and linking can be operated automatically, with a constant tension control.
