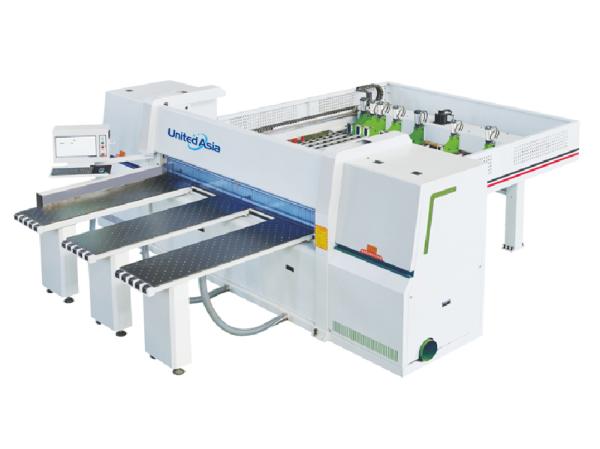

the mj330 computerized beam saw (also known as a cnc panel saw) is an automated cutting machine used for the high precision, heavy duty processing of wood based panels like mdf, plywood, particleboard, and melamine.
model mj270 mj330
maximum sawing length 2680mm 3280mm
maximum sawing thickness 120mm 120mm
main blade diameter 350 450mm 350 450mm
main saw blade shaft 75mm 75mm
main blade speed 4800m/min 4800m/min
secondary saw blade diameter 200mm 200mm
secondary saw blade shaft 50mm 50mm
secondary saw blade speed 7000m/min 7000m/min
saw cutting speed 0 100m/min 0 100m/min
overall size(l x w x h) 5356x5950x1890mm 5556x5950x1890mm
saw back speed 0 120m/min 0 120m/min
main saw drive motor 15kw 15kw
secondary saw drive motor 2.2kw 2.2kw
saw seat servo drive 2kw 2kw
feed servo motor 2kw 2kw
high pressure air supply motor 2.2kwx2 2.2kwx2
automatic feeding speed 0 120m/min 0 120m/min
use air pressure 6 8mpa 6 8mpa
Tariff conditions : 20000
Packaging : Wooden Box
